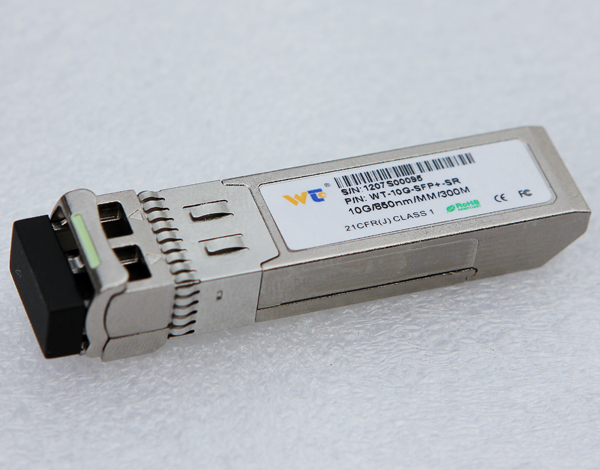

10G SFP+

model： 10G SFP+

Overview: ■Duplex LC connector ■Commercial temperature rang (0°C-70°C) ,(-40°C-85°C)optional ■10Gb/s serial optical interface compliant to IEEE 802.3ae...

Now Consulting

Description Technical parameters Applications Download Related Products

■Duplex LC connector
■Commercial temperature rang (0°C-70°C) ,(-40°C-85°C)optional
■10Gb/s serial optical interface compliant to
IEEE 802.3ae
■Maximum link length of 80Km
■Single 3.3V power supply
■Standard bail release mechanism
■RoHS Compliant Products Available

Label： 10G Optical Transceiver

Part No.	Package(bps/Hz)	Data Rate	Tx(nm)	Pout(dBm)	Rx	Sensitivity(dBm)	Temp °C	Reach	Other Option
WT-SFP+-SR	SFP+	10G	850nm	-5~-1	PIN	≤-11.5	0°C-70°C	220m	DDM RoHS
WT-SFP+-LR	SFP+	10G	1310nm	-8~-0.5	PIN	≤-12.5	0°C-70°C	10km	DDM RoHS
WT-SFP+-BX	SFP+	10G	1330nm	-8~-0.5	PIN	≤-12.5	0°C-70°C	10km	DDM RoHS
WT-SFP+-CWDM-0-40KM	SFP+	10G	1330nm	0~4	PIN	≤-15.5	0°C-70°C	40km	DDM RoHS
WT-SFP+-ER-0	SFP+	10G	1330nm	0~4	PIN	≤-15.5	0°C-70°C	40km	DDM RoHS
