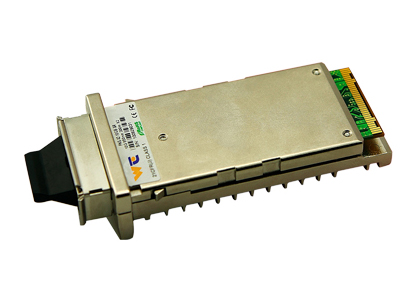

10G X2 Transceiver

model： 10G X2 Transceiver

Overview: ■SC-Duplex Optical Receptacle ■MDIO, DOM Support ■APD Photo-detector ■Compliant to X2 MSA ■Commercial temperature rang -40 C to 8 5 C(optional) ■...

Now Consulting

Description Technical parameters Applications Download Related Products

■SC-Duplex Optical Receptacle
■MDIO, DOM Support
■APD Photo-detector
■Compliant to X2 MSA
■Commercial temperature rang -40 C to 8 5 C(optional)
■RoHS Compliant Products Available
■Compliant to IEEE 802.3ae 10GBASE-ZR Application

Label： 10G Optical Transceiver

Part No.	Package(bps/Hz)	Data Rate	Tx(nm)	Pout(dBm)	Rx	Sensitivity(dBm)	Temp °C	Reach	Other Option
WT-X2-SR	X2	10G	850nm VCSEL	4	PIN	≤-11.1	-40°C-85°C	220m	DDM RoHS
WT-X2-LR	X2	10G	1310nm DML	-2	PIN	≤-14.4	-40°C-85°C	10Km	DDM RoHS
WT-X2-ER	X2	10G	1550nm EML	2	APD	≤-16	-40°C-85°C	40Km	DDM RoHS
WT-X2-ZR	X2	10G	1550nm EML	4	APD	≤-23	-40°C-85°C	80Km	DDM RoHS
