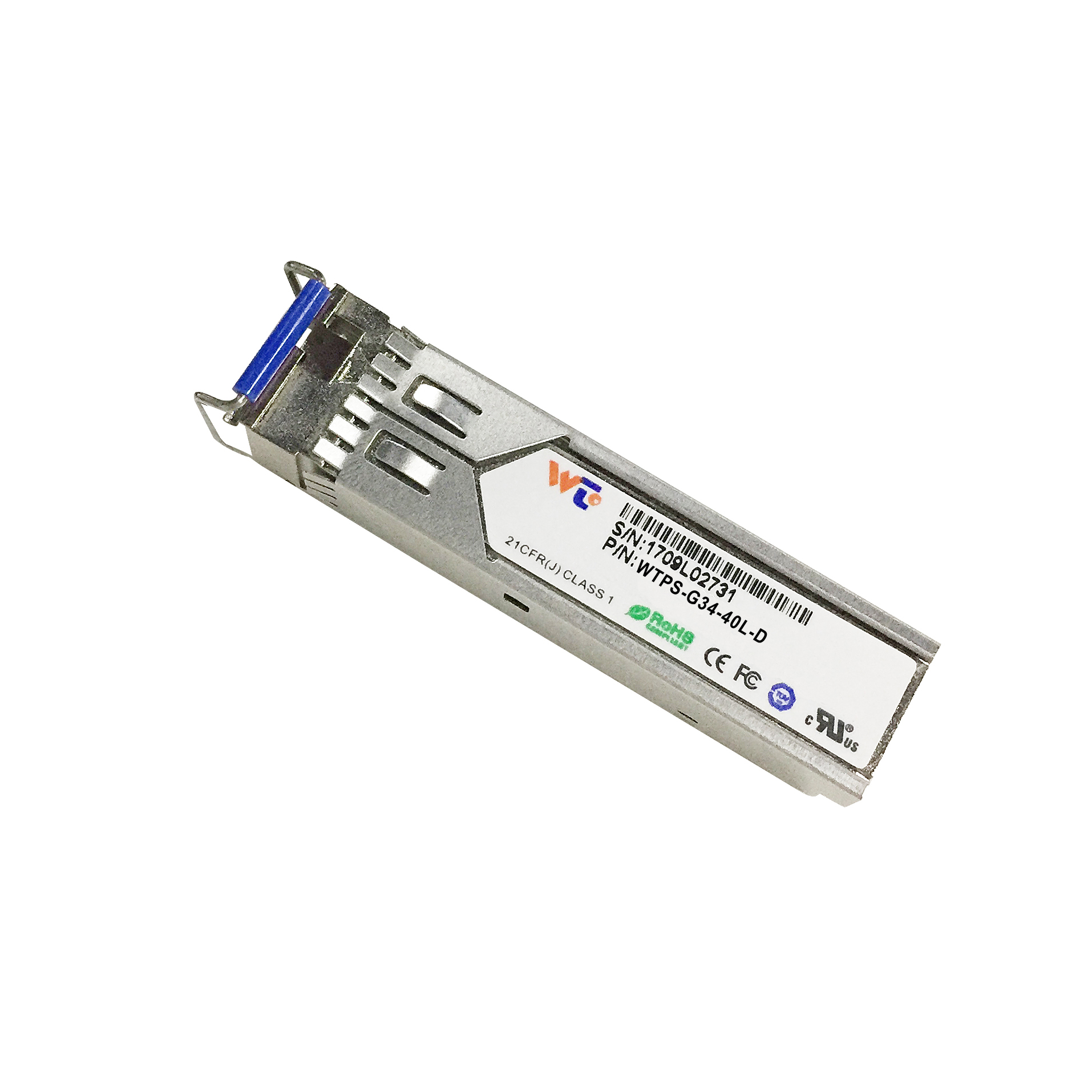

WTPS-G34-40L-D 1310DFB
型號： WTPS-G34-40L-D /WTPS-G43-40L-D
1.25Gbps BIDI SFP Optical Transceiver 40K m,DDM
Feature:
l SFP package with LC connector
l
1310nm DFB Laser and photodetector
l 1490nm DFB Laser and photodetector
l Up to 40Km transmission on SMF
l +3.3V single power supply
l LVPECL compatible data input/output interface
l
Low EMI and excellent ESD protection
l laser safety standard IEC-60825 compliant
l Compatible with RoHS
l Compatible with SFF8472
Application：
l Ethernet
l Telecom
l Fiber Channel
Outline drawing (mm):
.png)
Optical Characteristics：
(Ambient Operating Temperature 0°C to +70°C, Vcc =3.3 V)
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
|
|
Transmitter Section |
||||||
|
Center Wavelength |
Tx 1310 |
lo |
1260 |
1310 |
1360 |
nm |
|
Tx 1490 |
1480 |
1490 |
1510 |
|||
|
Spectral Width(RMS) |
Tx 1310 |
Dl |
- |
- |
1 |
nm |
|
Tx 1490 |
|
|
1 |
|||
|
Average Output Power |
Tx 1310 |
Po |
-5 |
- |
0 |
dBm |
|
Tx 1490 |
-5 |
|
0 |
|||
|
Extinction Ratio |
Er |
8 |
- |
15 |
dB |
|
|
Rise/Fall Time(20%~80%) |
Tr/Tf |
|
|
0.26 |
ns |
|
|
Total jitter |
Tj |
|
|
0.43 |
UI |
|
|
Optical Eye Diagram |
IEEE 802.3z and ANSI Fibre Channel Compatible |
|||||
|
Receiver Section |
||||||
|
Center Wavelength |
Rx 1490 |
lo |
1450 |
1490 |
1530 |
nm |
|
Rx 1310 |
1260 |
1310 |
1360 |
|||
|
Receiver Sensitivity |
Rsen |
|
|
-24 |
dBm |
|
|
Receiver Overload |
Rov |
-3 |
|
|
dBm |
|
|
Return Loss |
|
12 |
|
|
dB |
|
|
LOS Assert |
LOSA |
-36 |
|
|
dBm |
|
|
LOS Dessert |
LOSD |
|
|
-25 |
dBm |
|
|
LOS Hysteresis |
|
0.5 |
|
5 |
|
|
有關詳細信息，請在“相關下載”中查看數據表.
WTPS-G34-40L-D 1310FP
1.25Gbps BIDI SFP Optical Transceiver 40Km,DDM
WTPS-G45-80L-D
1.25Gbps BIDI SFP Optical Transceiver 80K m,DDM
WTPS-G34-20L-D
1.25Gbps BIDI SFP Optical Transceiver 20K m, DDM
Industrial 10/100BASE-T Copper SFP Transceiver
SFP-100BASE-Tx Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They a...
2.5Gbps SFP Optical Transceiver 40Km
WTPD-H**9-40L*-D 2.5Gbps SFP Optical Transceiver 40K m DDM (1270-1610 nm)
1.25Gbps SFP Optical Transceiver 40Km
D-G**9-40*-D 1.25Gbps SFP Optical Transceiver 40K m DDM (1270-1610nm)
