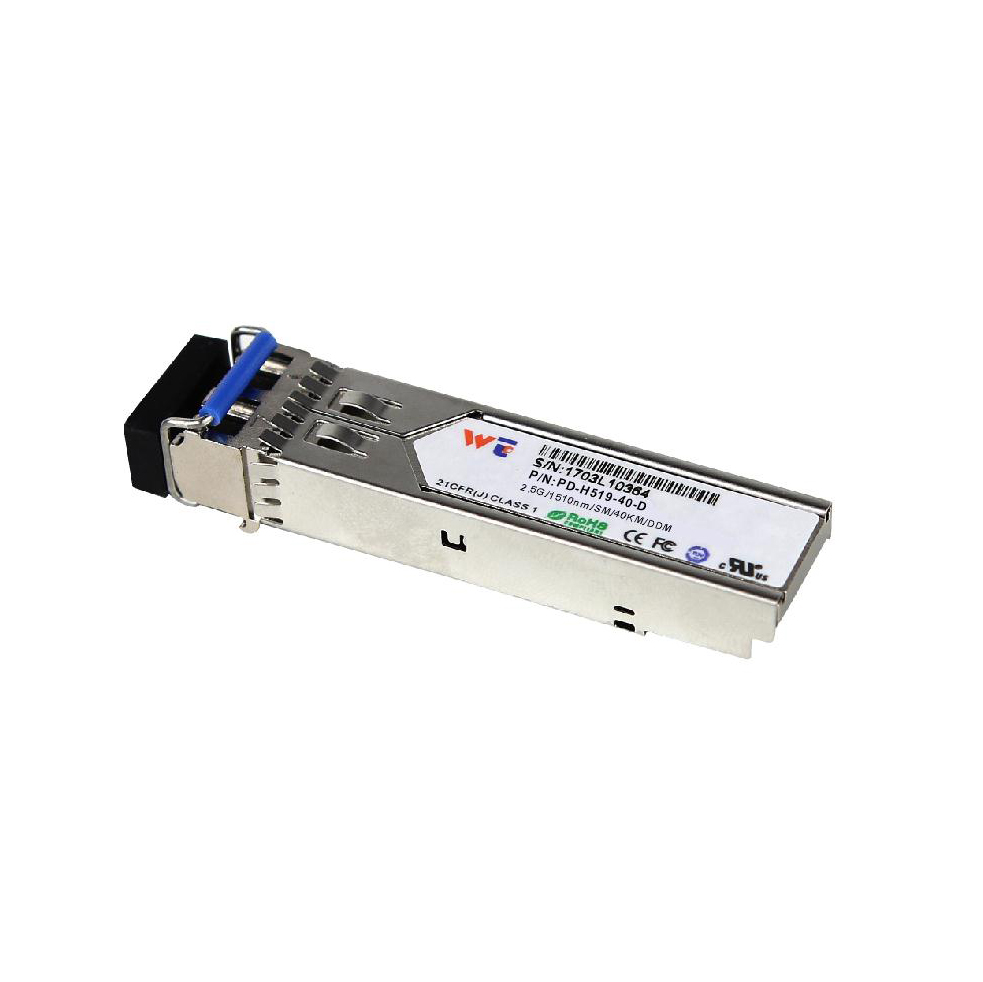

2.5Gbps SFP Optical Transceiver 40Km
型號： WTPD-HXX9-40Lx-D CWDM
WTPD-H**9-40L*-D
2.5Gbps SFP Optical Transceiver 40K m DDM (1270-1610 nm)
Feature:
l SFP package with LC connector
l 1270-1610nm CWDM DFB laser with Isolator and PIN photo detector
l Up to 40Km transmission on SMF
l +3.3V single power supply
l LVPECL compatible data input/output interface
l Low EMI and excellent ESD protection
l laser safety standard IEC-60825 compliant
l Digital Diagnostic SFF-8472 compliant
l Compatible with RoHS
Application
l Ethernet
l Telecom
l Fiber Channel
Outline drawing (mm):
.png)
Optical Characteristics:
(Ambient Operating Temperature 0°C to +70°C, Vcc =3.3 V)
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
|
Transmitter Section |
|||||
|
Center Wavelength |
lo |
1xx0-6.5 |
1xx0 |
1xx0+6.5 |
nm |
|
Spectral Width(RMS) |
Dl |
- |
- |
1 |
nm |
|
Side Mode Suppression Ratio |
SMSR |
|
35 |
|
|
|
Average Output Power |
Po |
-3 |
- |
4 |
dBm |
|
Extinction Ratio |
Er |
8 |
- |
- |
dB |
|
Rise/Fall Time(20%~80%) |
Tr/Tf |
|
|
0.26 |
ns |
|
Total jitter |
Tj |
|
|
0.43 |
UI |
|
Optical Eye Diagram |
IEEE 802.3z and ANSI Fibre Channel Compatible |
||||
|
Receiver Section |
|||||
|
Center Wavelength |
lo |
1270 |
|
1610 |
nm |
|
Receiver Sensitivity |
Rsen |
|
|
-22 |
dBm |
|
Receiver Overload |
Rov |
-3 |
|
|
dBm |
|
Return Loss |
|
12 |
|
|
dB |
|
LOS Assert |
LOSA |
-36 |
|
|
dBm |
|
LOS Dessert |
LOSD |
|
|
-23 |
dBm |
|
LOS Hysteresis |
|
0.5 |
|
4 |
|
有關詳細信息，請在“相關下載”中查看數據表.
