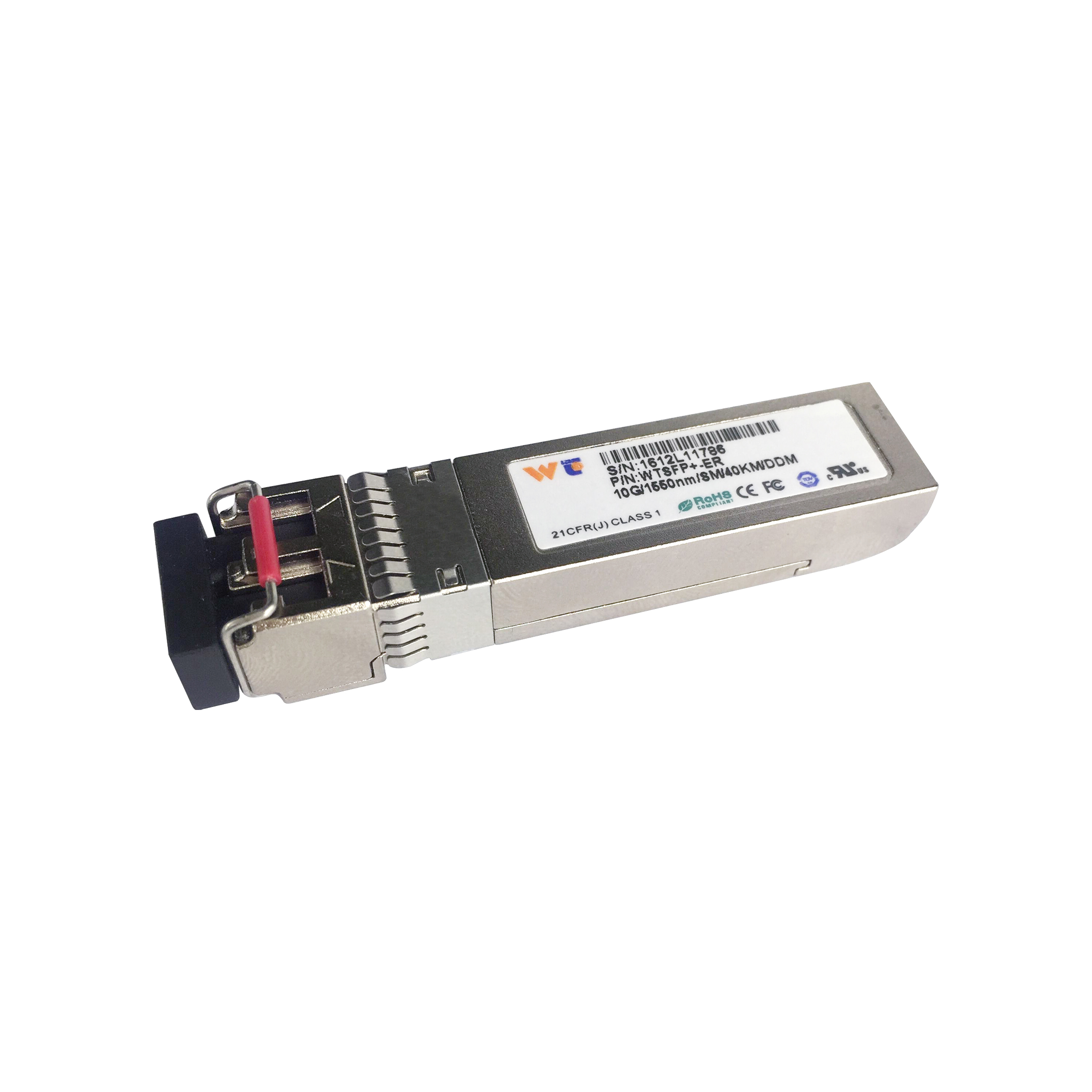

SFP+-ER 萬兆單模40KM光模塊

型號： WT-SFP+-ER

10Gb/s 1550nm SFP+ Transceiver 可熱插拔SFP+封裝/雙LC接口；支持40km傳輸距離，數(shù)字診斷功能可選/金屬外殼封裝降低電磁干擾，遵循SFP+ MSA協(xié)議；符合SDH/SONET傳輸標準。廣泛使用在數(shù)據中心，基站，城域網，局域網，存儲網絡，光纖通道，光纖到戶和無線網絡等領域。

立即咨詢

產品描述技術參數(shù) 應用方案相關下載相關產品

PRODUCT FEATURES

l Hot-pluggable SFP+ footprint

l Supports 9.5 to 10.3Gb/s bit rates

l Power dissipation < 1.5W

l Single 3.3V power supply

l Maximum link length of 40km

l 1550nm EML transmitter, PIN photo-detector

lDuplex LC connector

lPower dissipation < 1.5W

lBuilt-in digital diagnostic functions

lCase temperature range ：-5°C to 70°C

APPLICATIONS

l10GBASE-ER/EW 10G Ethernet

STANDARD

l Compliant with SFF-8472 SFP+ MSA

l Compliant to SFP+ SFF-8431 and SFF-8432

l Compliant to 802.3ae 10GBASE-ER

l RoHS Compliant

Outline Dimensions

標簽： SFP+光模塊

Optical Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Transmitter
Average Launched Power	PO	-2		+4	dBm	Note (1)
Extinction Ratio	ER	6			dB
Center Wavelength	λc	1530	1550	1565	nm
Spectrum Band Width (RMS)	σ			1.0	nm
SMSR		30			dB
Transmitter OFF Output Power	POff			-40	dBm
Optical Rise/Fall Time	tr/tf		100	260	ps	Note (2)
Transmitter and Dispersion Penalty	TDP			3.0	dB
Output Eye Mask	Compliant with IEEE 0802.3ae
Receiver
Input Optical Wavelength	λ	1270		1610	nm
Receiver Sensitivity				-15	dBm	Note (3)
Input Saturation Power (Overload)	Psat	0.5			dBm
LOS Detect -Assert Power	PA	-28			dBm
LOS Detect - Deassert Power	PD			-19	dBm
LOS Detect Hysteresis	PHYS	0.5			dB
