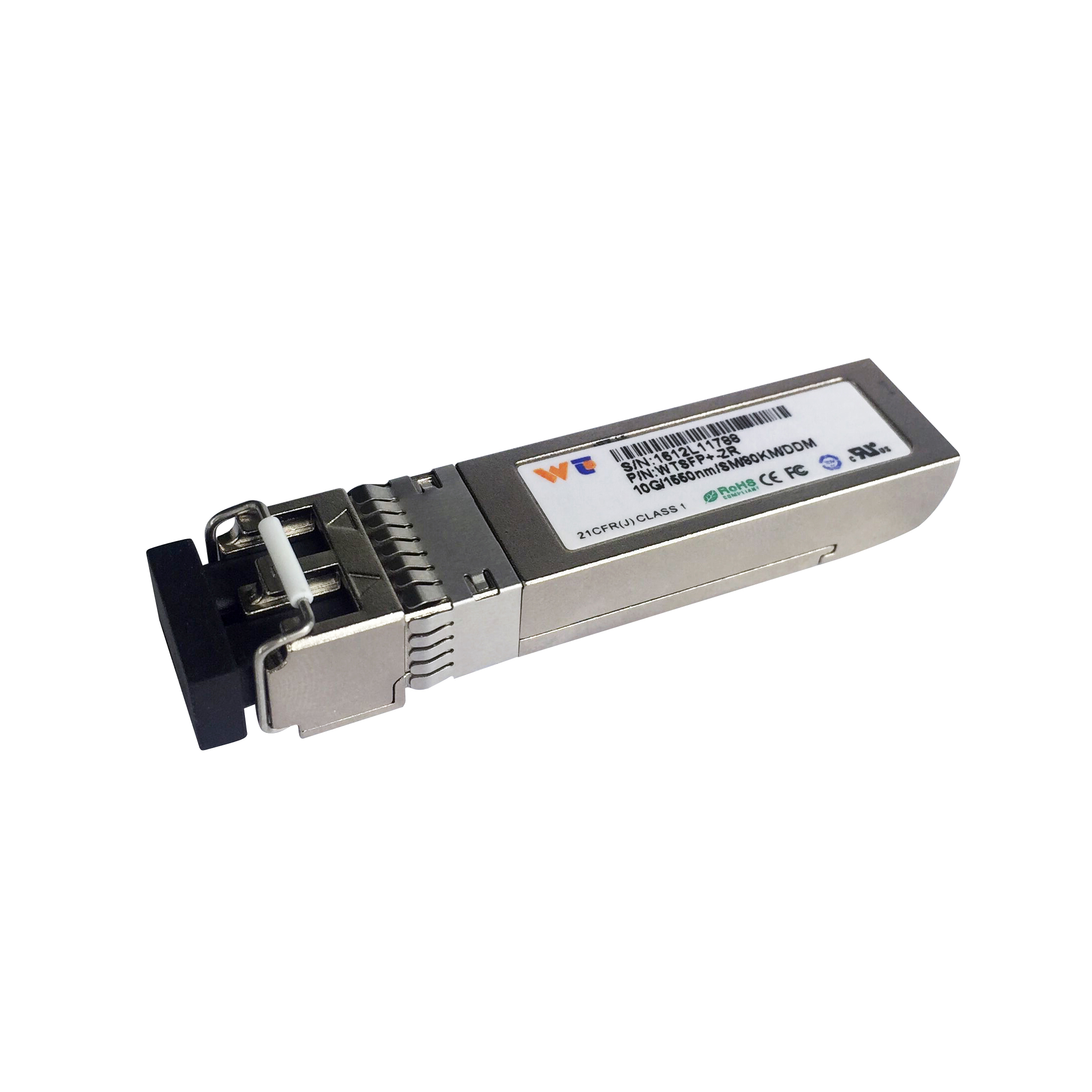

SFP+-ZR 萬兆單模80KM光模塊
型號： WT-SFP+-ZR
10Gb/s 1550nm SFP+ Transceiver 可熱插拔SFP+封裝/雙LC接口；支持80km傳輸距離，內置數字診斷功能，3.3V單電源供電；功耗＜1.5w，工作溫度范圍：-5°C至70°C。兼容性強（兼容華為H3C思科）。
PRODUCT FEATURES
l Hot-pluggable SFP+ footprint
l Supports 9.5 to 10.3Gb/s bit rates
l Power dissipation < 2W
l Single 3.3V power supply
l Maximum link length of 80km
l 1550nm EML transmitter, APD photo-detector
lDuplex LC connector
lPower dissipation < 2W
lBuilt-in digital diagnostic functions
l Case temperature range ：-5°C to 70°C
APPLICATIONS
l10GBASE-ZR/ZW 10G Ethernet
STANDARD
l Compliant with SFF-8472 SFP+ MSA
l Compliant to SFP+ SFF-8431 and SFF-8432
l Compliant to 802.3ae 10GBASE-ZR
l RoHS Compliant.
Outline Dimensions
.png)
Optical Characteristics
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Transmitter |
||||||
|
Average Launched Power |
PO |
0 |
|
+5 |
dBm |
Note (1) |
|
Extinction Ratio |
ER |
6 |
|
|
dB |
|
|
Center Wavelength |
λc |
1530 |
1550 |
1565 |
nm |
|
|
Spectrum Band Width (RMS) |
σ |
|
|
1.0 |
nm |
|
|
SMSR |
|
30 |
|
|
dB |
|
|
Transmitter OFF Output Power |
POff |
|
|
-40 |
dBm |
|
|
Optical Rise/Fall Time |
tr/tf |
|
100 |
260 |
ps |
Note (2) |
|
Transmitter and Dispersion Penalty |
TDP |
|
|
3.0 |
dB |
|
|
Output Eye Mask |
Compliant with IEEE 0802.3ae |
|
|
|||
|
Receiver |
||||||
|
Input Optical Wavelength |
λ |
1270 |
|
1610 |
nm |
|
|
Receiver Sensitivity |
|
|
|
-23 |
dBm |
Note (3) |
|
Input Saturation Power (Overload) |
Psat |
0.5 |
|
|
dBm |
|
|
LOS Detect -Assert Power |
PA |
-36 |
|
|
dBm |
|
|
LOS Detect - Deassert Power |
PD |
|
|
-24 |
dBm |
|
|
LOS Detect Hysteresis |
PHYS |
0.5 |
|
|
dB |
|
有關詳細信息，請在“相關下載”中查看數據表.
