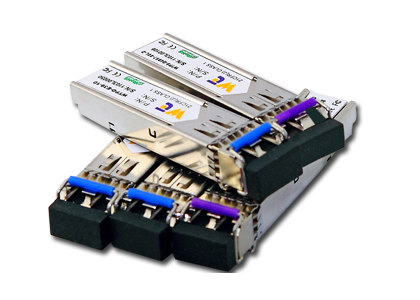

SFP transceiver

model： SFP transceiver

Overview: ■SFP package with LC connector ■Single +3.3V Power Supply ■Up to 80Km transmission with single-mode fiber ■Compliant with Telcordia (Bellcore) GR-4...

Now Consulting

Description Technical parameters Applications Download Related Products

■SFP package with LC connector
■Single +3.3V Power Supply
■Up to 80Km transmission with single-mode fiber
■Compliant with Telcordia (Bellcore) GR-468-CORE
■Eye Safety Designed to Meet Laser Class1,Compliant with IEC60825-1
■RoHS Compliant Products Available

Label： SFP Optical transceiver

Part No.	Package(bps/Hz)	Data Rate	Tx(nm)	Pout(dBm)	Rx	Sensitivity(dBm)	Temp °C	Reach	Other Option
WTPD-H59-60L	SFP	2.5G	1550nm DFB	0~5	PIN	≤-25	0-70°C	60km	DDM RoHS
WTPD-H39-40L	SFP	2.5G	1310nm DFB	-5~0	PIN	≤-22	0-70°C	40km	DDM RoHS
WTPD-H39-40L-D	SFP	2.5G	1310nm DFB	-5~0	PIN	≤-22	0-70°C	40km	DDM RoHS
WTPD-H39-20L	SFP	2.5G	1310nm DFB	-8~-3	PIN	≤-22	0-70°C	20km	DDM RoHS
WTPD-G59-1BL	SFP	1.25G	1550nm DFB	0~5	APD	≤-32	0-70°C	120km	DDM RoHS
WTPD-G59-80L	SFP	1.25G	1550nm DFB	0~5	PIN	≤-26	0-70°C	80km	DDM RoHS
WTPD-G39-20L	SFP	1.25G	1310nm FP	-8~-3	PIN	≤-24	0-70°C	20km	DDM RoHS
WTPD-G88-05L	SFP	1.25G	850nm VCSEL	-8~-3	PIN	≤-19	0-70°C	550m	DDM RoHS
WTPD-E59-80L	SFP	155M	1550nm DFB	-5~0	PIN	≤-36	0-70°C	80km	DDM RoHS
WTPD-E39-40L	SFP	155M	1310nm FP	-15~-3	PIN	≤-36	0-70°C	40km	DDM RoHS
WTPD-E39-20L	SFP	155M	1310nm FP	-15~-3	PIN	≤-36	0-70°C	20km	DDM RoHS
WTPD-E39-20L-D	SFP	155M	1310nm FP	-15~-3	PIN	≤-36	0-70°C	20km	DDM RoHS
